Plan Number:
 |
SD-4442-86
|

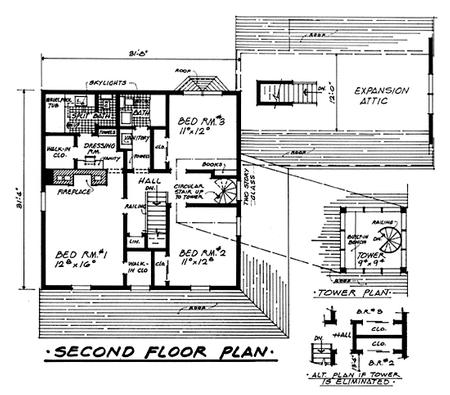

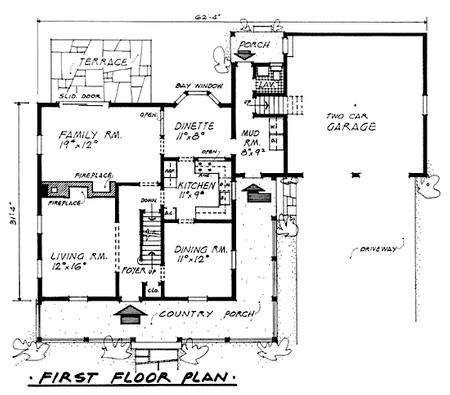

| Description: This house design has a living room, dining room, family room, kitchen, dinette, three
bedrooms, two baths and a unique feature, an observation tower, for 2,133 square feet of habitable area. There is an expansion attic, two-car garage, lavatory and mud room. A sliding glass door from the family room leads to a terrace. The tower may be excluded from the plan should you wish (see alternative rendering in photo above). The overall dimensions of 62'-4" by 31'-4" include the garage. Square footage of the first floor is 992', second floor is 992', mud room 149.4' and the garage (expansion attic area) is 515.29'. There is also a full basement with a ceiling height of 7'-0". |
| Bedrooms : |
3 |
| Baths : |
2.5 |
| Width : |
62' 4" |
| Depth : |
31' 4" |
| Main Ceiling Height: |
8 |
| Roof Pitch: |
4 in 12 |
| Secondary Roof Pitch: |
10 in 12 |
| Floors : |
2 |
| 1st Floor :
|
1141 sq. ft. |
| 2nd Floor :
|
992 sq. ft. |
| Total Living :
|
2133 sq. ft. |
| Total Area :
|
0 sq. ft. |
| Garage Bays: |
2 |
| Garage Type: |
Attached |
Foundation:
Standard Basement |
Options:
Reproducible / PDF, Material List, Mirror Reading Reverse, Modifications |
| |
 |
|
|
